Dough Sheeter




Transforms the dough, into uniform thin, flattened, round dough pieces.

The Sheeter receives the rounded dough pieces from the First Proofer and transforms them, continuously, into uniform thin, flattened, round dough pieces.

This is possible because of an electro-pneumatic system that operates the Sheeter, and because of its high precision sheeting cylinders coated in hard chrome.

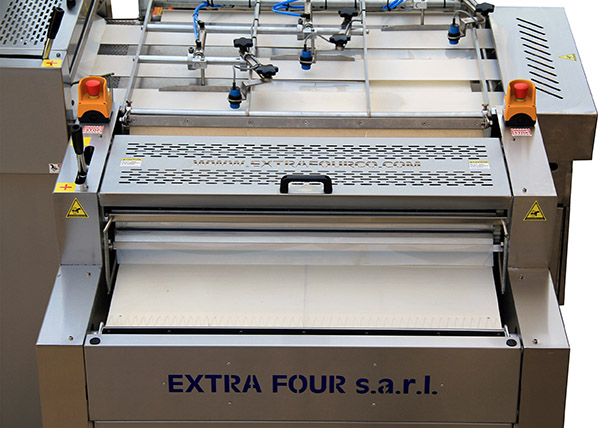

  • One or Two automatic pressing units with flour dusters are installed, depending on the model.

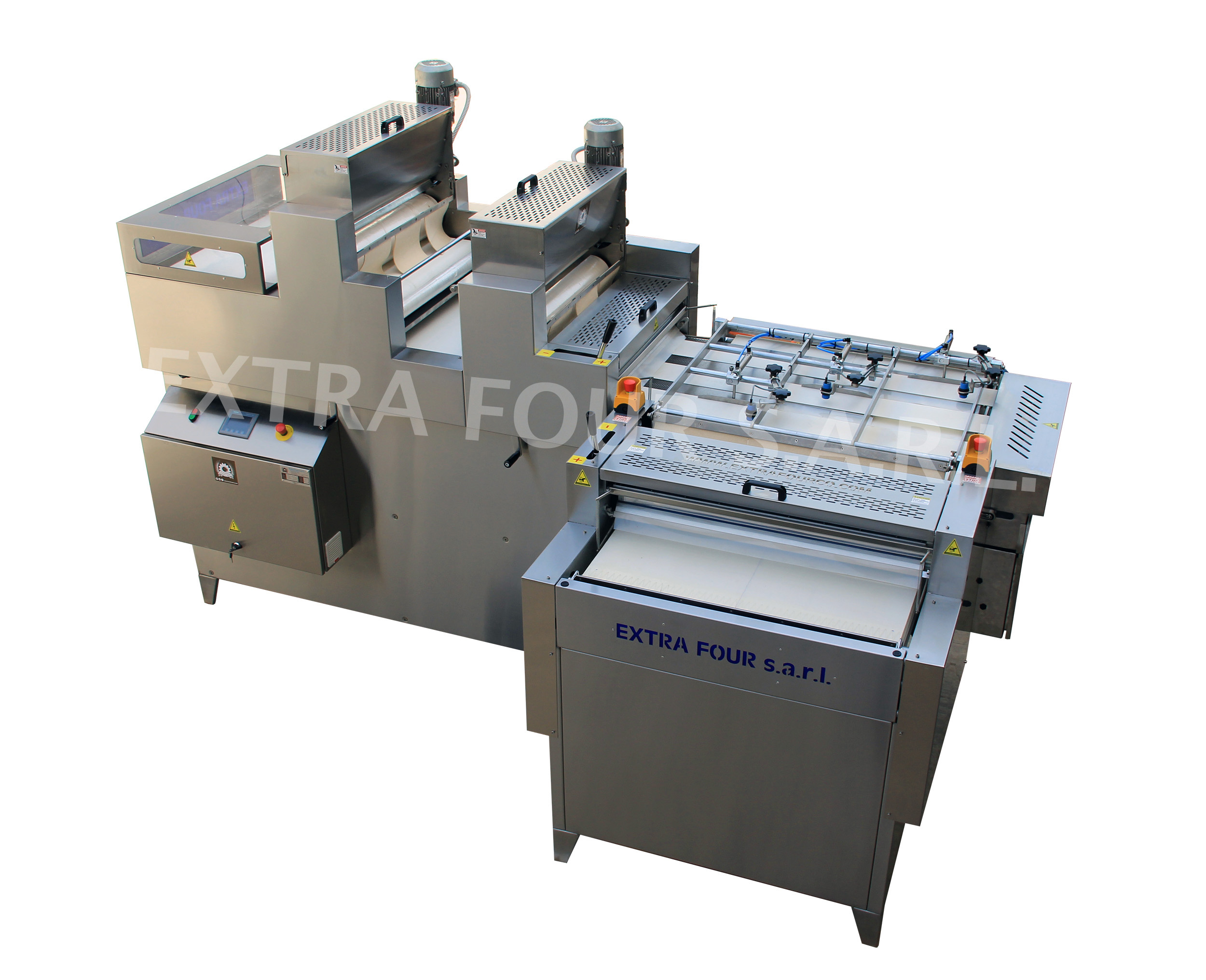

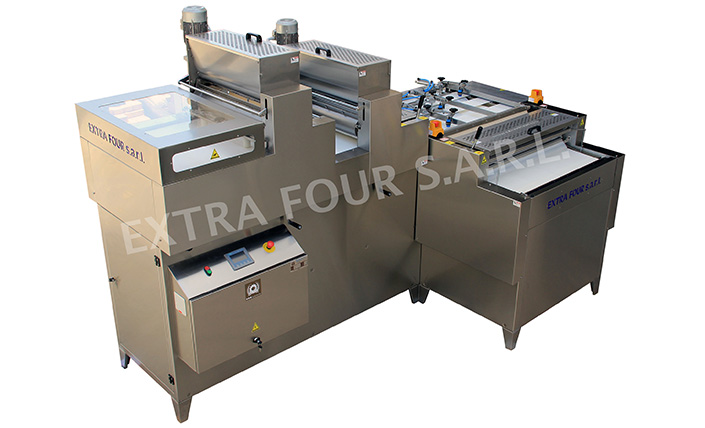

  • L-shape type, with two flattening procedures.



  • These sheeted dough loaves are automatically sent to the Final Proofer to begin the final fermentation process.

  • Extra Four designs the sheeter allowing the easy adjustment of the loaf’s required diameter and thickness:


-Thickness: 1 to 6 mm.
    -Loaf’s diameter: 13 to 38 cm

SPECIFICATIONS

  Loaf diameter range
(mm)

Power

(kW)

Power

Supply

Weight

(kg)

Dimensions

L W H (mm)

SMART Single Row 130 - 380 1 Three-phase + N 1500 2920x1500x2200
Single Row 130 - 380 1 Three-phase + N 1400 2920x1500x2200
Double Rows 130 - 380 1.7 Three-phase + N 3000 3320x1650x2300
Triple Rows 130 - 310 1.7 Three-phase + N 3300 3450x1900x2300
Four Rows 130 - 230 1.7 Three-phase + N 3400 3870x1700x2400
